square tube forming machine
TECHNICAL SPECIFICATIONS
1. Description
This equipment is specially used for producing Φ25-Φ100mm, 1.0-4.0mm high-frequency straight seam welded tube and corresponding square tube and special-shaped tube (δ≤3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of tube diameter and wall thickness.
2. Applicable material:
(1) Hot or cold-rolled steel strip
(2) Material: Q235, Q345B
(3) The thickness of steel strip: 1.0-4.0mm
(4) The width of steel strip: 80-280mm
(5) I.D. of steel coil: Φ450-Φ550mm
(6) O.D. of steel coil: Φ800-Φ1500mm
(7) Maximum weight coil: 4000kgs

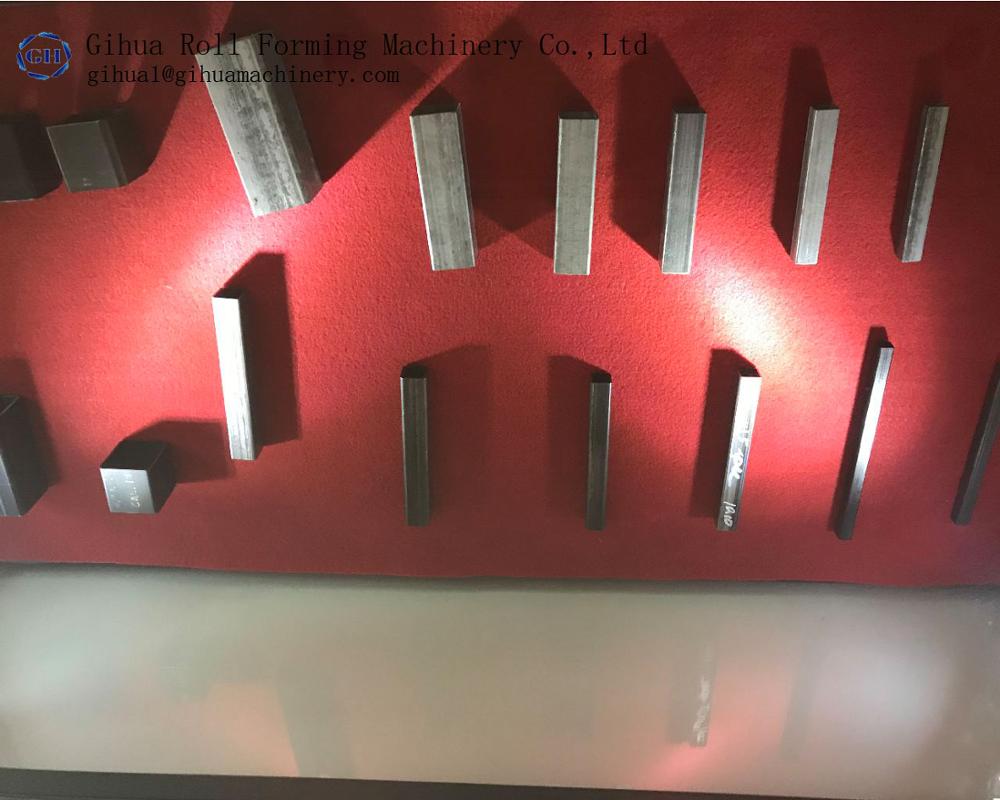

3. Dimension range of processing steel tube:
(1) O.D.: Φ25-Φ100mm
(2) Wall thickness: 0.7-4.0mm (square tube and special-shaped tube δ≤3.0mm)
(3) Length: 4-8M
4. Milling speed: 20-70M/min(choose different speed as per different pipe diameter and thickness)
5. Product (steel tube) process flow:

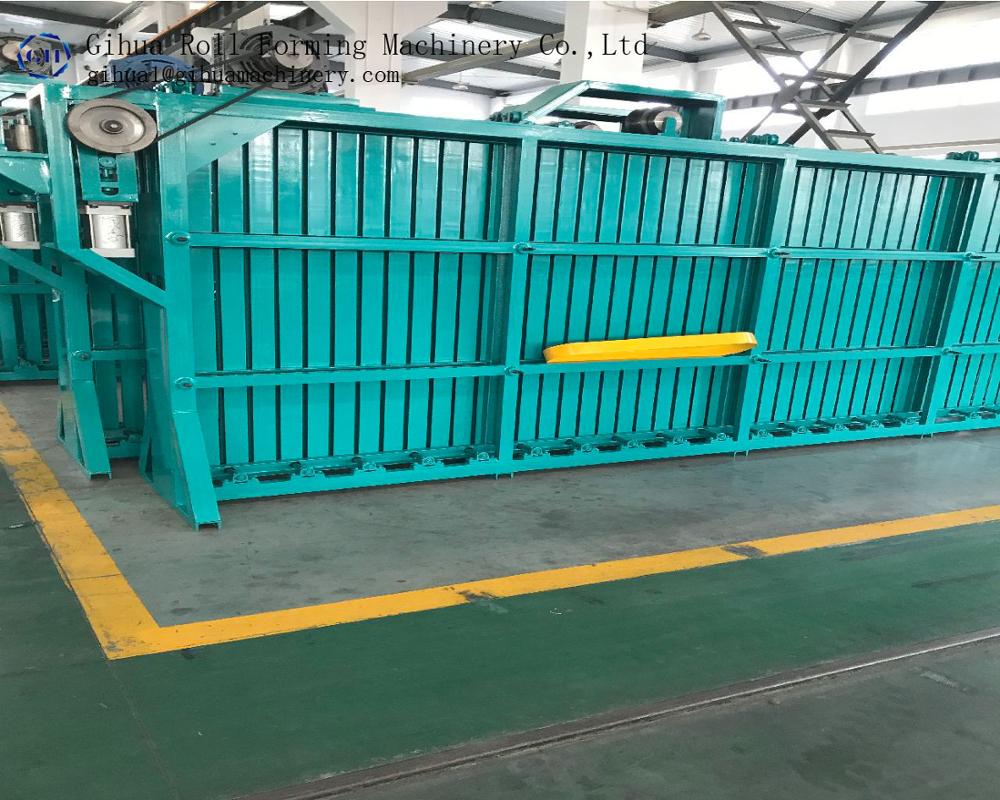

Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube

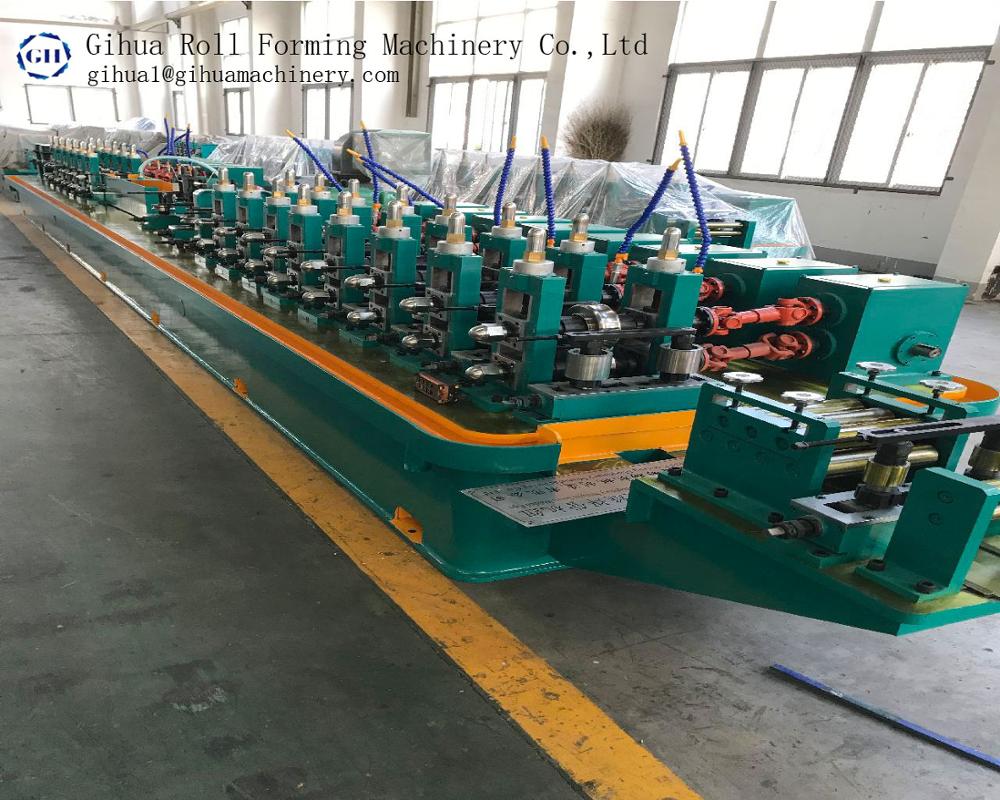

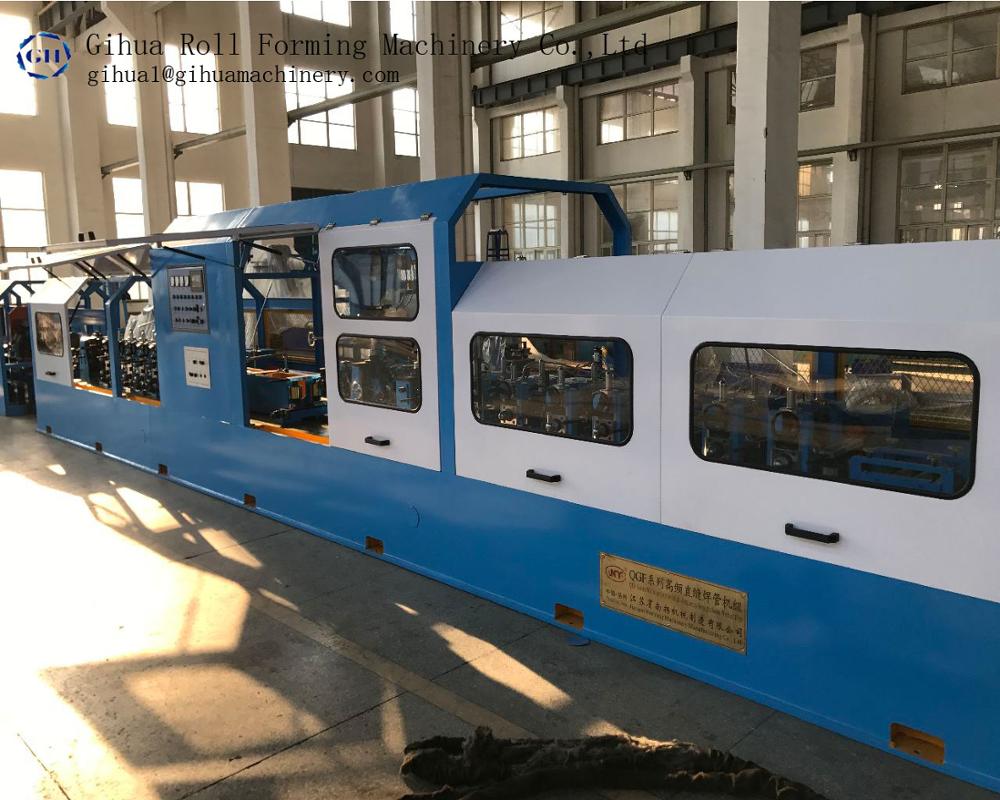

Roll Forming System
1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.
2、40mm thickness wall for forming system to ensure machine 15 years long life.
Automatic & Easy Operate
Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.
Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.
Automatic Operation:once you set quantity and length of product,machine will produce product automatically.
Control Quality Well
Gihua factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.
Loading&Delivery
Simple to install and easy to maintain
You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.
Our experienced technicians can supply overseas service.
