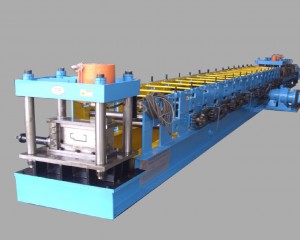

Door frame automatic forming machine

The Door frame automatic forming machine is composed of five parts: steel plate decoiler, leveling machine, punching equipment, door frame profile forming machine, and 45 degree angle cutting. The feed drive motor of the steel plate straightening machine is 3KW, and the feed drive motor of the profile forming machine is 7.5KW. Because it is a steel plate leveling machine, it is far away from the other two parts and cannot be controlled and operated centrally. The connection length between the encoder and the control system cannot be too long. Therefore, the control system adjusts two parts, one controls the steel plate leveling machine, and the other controls the profile forming machine and the 45-degree angle cutting machine.

The working process is as follows: The coiled plate enters the steel plate for leveling, is punched by multiple punching rollers to complete the chain hole or unlocking hole, etc., and then enters the Door frame automatic forming machine and is gradually formed by multiple pairs of molds to become a profile and meet the design requirements. The installation hole is punched in length again, and the 45-angle cutting machine cuts 45-degree welding grooves on both ends of the door frame profile as required.

GH can produce all the door frames, and can also design and produce machines according to the drawings provided by the customer. GH is a supplier that provides production line solutions. A series of automated production line equipment such as anti-theft doors, fire doors, door frames, etc. can be provided.

未标题-2


Post time: Aug-23-2022
