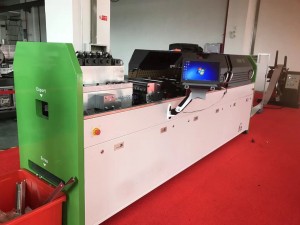

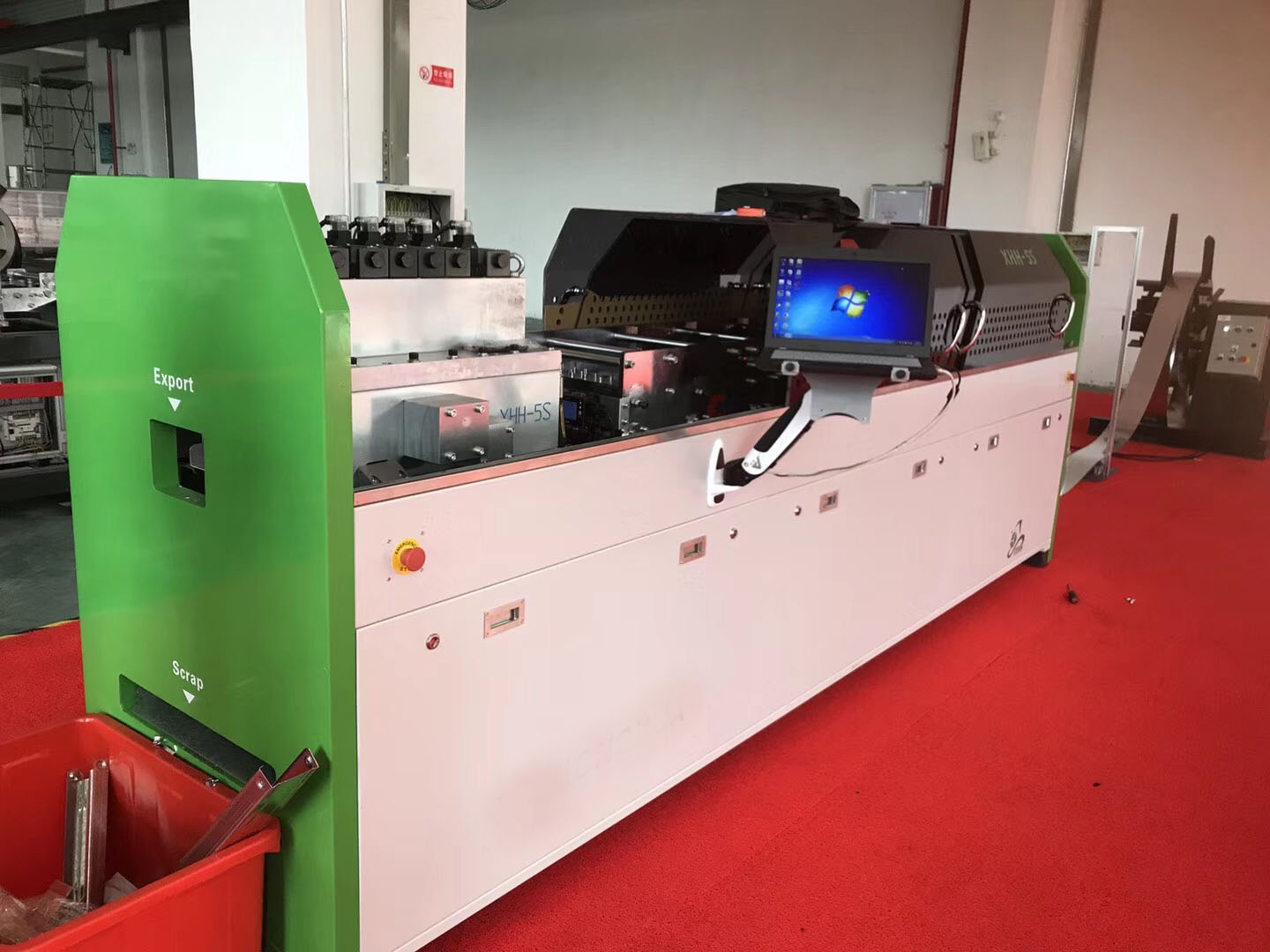

Light Gauge steel frame roll forming machine

Short Description:

Gihua Roll Forming Machine
1.Gihua guarantees our machines can run 15 years in buyer factory,maximizing customer investment profit.
2.Gihua supplies lifetime services for our machines.
3.Simple to install and easy to maintain.
Our machines are well installed and tested before delivery. You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.
Our experience technicians can go to your factory and train your workers.
4.High efficiency: forming speed: 10-25m/min。
users get 9000m/day.(working 8 hours per day)

Model: Light Gauge steel frame roll forming machine
Brand:Gihua
Code:8455221000

Send email to us Send email to us Download as PDF

Product Detail

Product Tags

TECHNICAL SPECIFICATIONS

Technical Parameters of Metal Rolling Machine

Suitable material	Q235 color steel coils;0.3-0.7mm;1220&1450mm coil width
Forming speed	About 10- 25m/min
Power Requirement	Main motor power: 5.5 Kw(Depend on final design)
Power Requirement	Hydraulic station power: 4.0Kw(Depend on final design)
Material of forming rollers	No.45 steel, plated with chrome on surface.
Material of cutter	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel, with heat treatment.Roller grinder milling.
Shaft diameter	65mm
Controlling system	Mitsubishi PLC & converter
Total weight of machine	About 3800KGS
Machine's size	About 4.5m×1.0m× 1.2m (Depend on final design)
Shipping	1x40GP container can load one machine

Layout Drawing

Roll Forming System

1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.

2、40mm thickness wall for forming system to ensure machine 15 years long life.

Control Quality Well

Gihua factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Loading&Delivery

Simple to install and easy to maintain

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.

Certifications

Contact Me

If any needs or questions, feel free to contact me please.
We would like to design the machine for you
Mob/WhatsApp: 008618551231440
WeChat: 243554222
