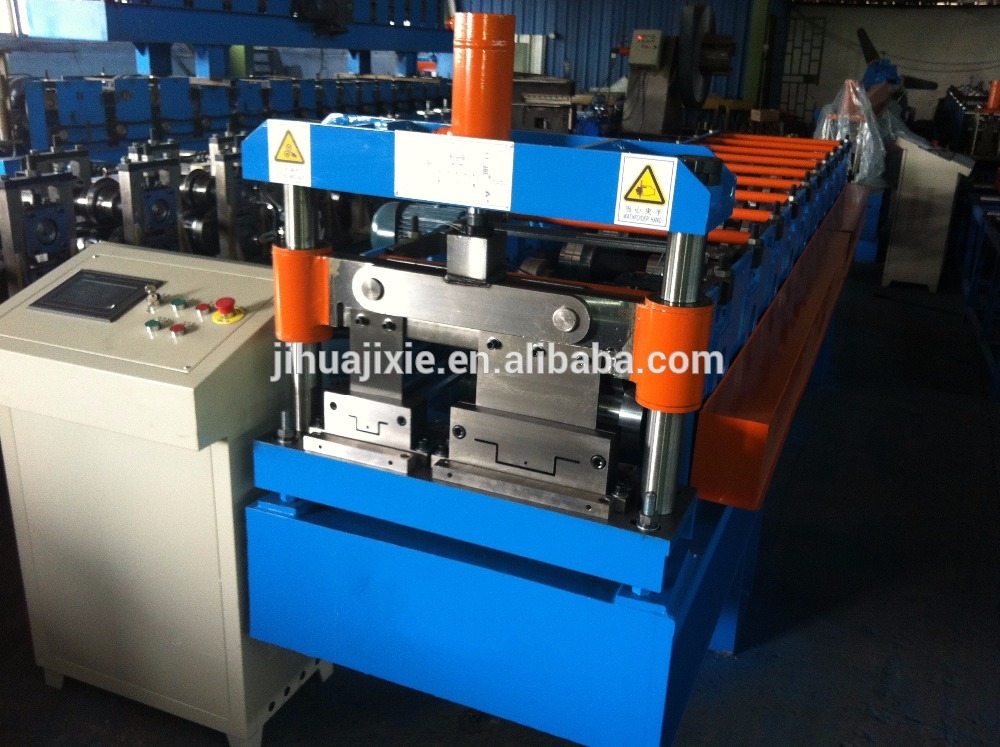

Double rows stud Roll forming machine
TECHNICAL SPECIFICATIONS
Technical Parameters of Metal Rolling Machine
| Suitable material | Q235 color steel coils;0.3-0.7mm;1220&1450mm coil width |
| Forming speed | About 10- 25m/min |
| Power Requirement | Main motor power: 3.0 Kw(Depend on final design) |
| Hydraulic station power: 3.0Kw(Depend on final design) | |
| Material of forming rollers | No.45 steel, plated with chrome on surface. |
| Material of cutter | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel, with heat treatment.Roller grinder milling. |
| Shaft diameter | 65mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 10000KGS |
| Machine's size | About 15m×1.5m× 1.5m (Depend on final design) |
| Shipping | 1x40GP container can load one machine |
Layout Drawing
Roll Forming System
1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.
2、40mm thickness wall for forming system to ensure machine 15 years long life.
Automatic & Easy Operate
Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.
Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.
Automatic Operation:once you set quantity and length of product,machine will produce product automatically.
Control Quality Well
Gihua factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.
Loading&Delivery
Simple to install and easy to maintain
You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.
Our experienced technicians can supply overseas service.
